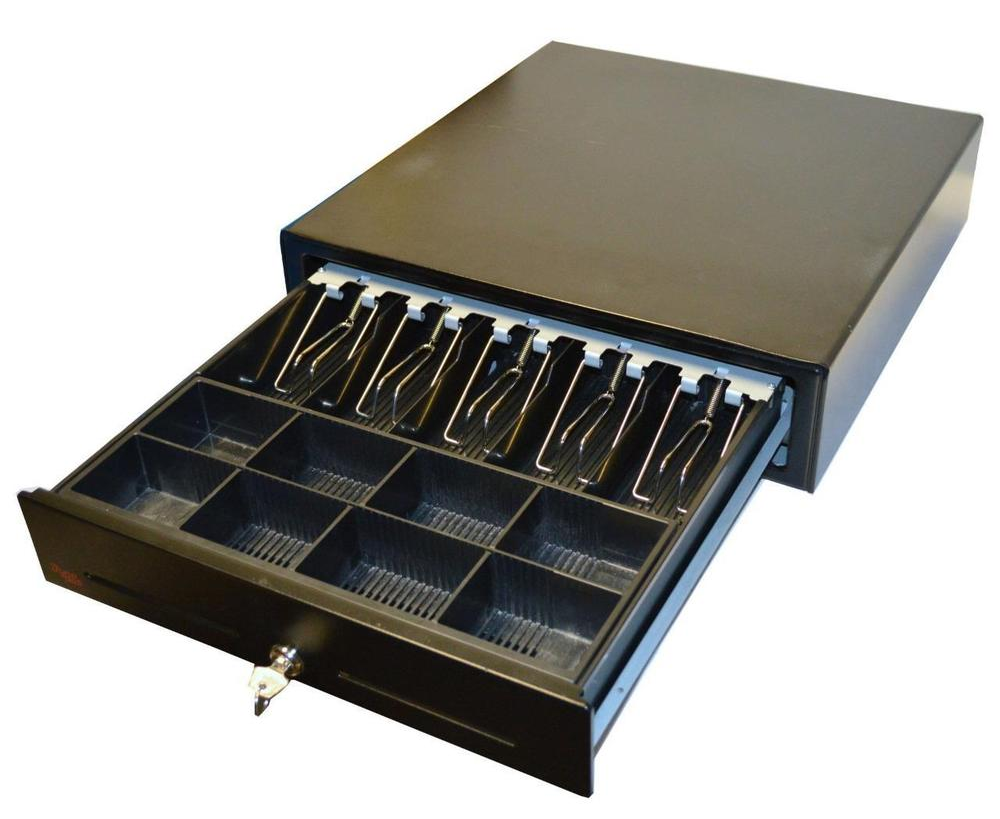

Dynapos DYN-CD800G Cash Drawer

The Dynapos Cash Drawers are loaded with many value added features that allow you to adjust the drawer to fit your cash management needs. Specifications Features • Dimension: 420(W) x 440(D) x 100(H) mm • Net Weight: 8.3kg • Cash Tray: 355(W) x 325(D) x 60(H)mm with • Micro switch for drawer open feed back status detection • Adjustable dividers for five bill compartments and 8 coin sections • Metal construction • 6 Pin / 24 V W/Micro • Metal bill clips • Separated coin tray removable from the bill tray with adjustable dividers for up to 9 compartments • Printer Driven • Lifecycle: tested to minimum one million cycles • Color: Black Accesories DYN-0003 Serial Cash Drawer Trigger The DYN-0003 Cash Drawer Trigger is designed to provide serial interfacing to the cash drawer. This allows the cash Drawer to be directly connected to a Serial Port of the computer. Features: • Cash Drawer can be directly connected to the computer • Powered by the USB bus, external power is not required. • No need to set the COM properties • Suitable to any cash drawer command Specifications • Dimension: Interface Module: 68(H) x 44(W) x 25(H) mm • Weight: 80 grams (including cable) • Color: Black • Computer Interface : USB & Serial • Power Requirement: 5V 200mA (max) • Cash Drawer: Connector: RJ11 Rating: Suits 12/24 Volts Repeat Rate: 5 seconds (max) • Environment: Operating temp: 0 ~ 55°C Storage Temp: -10 ~ 55°C Humidity: 10 ~ 90° Relative
