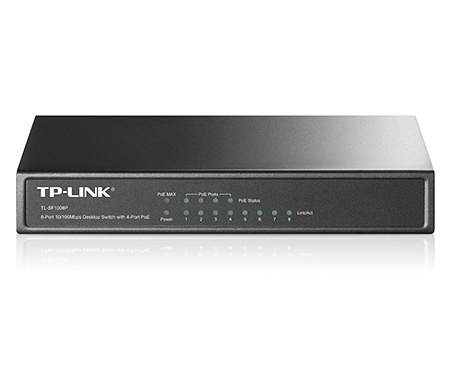

TP-LINK TL-SF1008P 4Port POE Switch
Highlights:
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Requires no configuration and installation
Features:
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
- External power adapter supply
Specifications:
| HARDWARE FEATURES | |
|---|---|

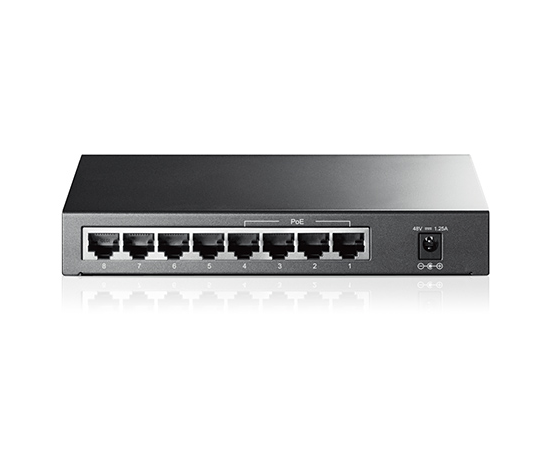

| Interface | 8 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 57W |
| Backbound Bandwidth | 1.6Gbps |
| Mac Address Table | 2K |
| External Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Dimensions (W X D X H) | 6.7*3.9*1.1 in. (171*98*27 mm) |
| Fan Quantity | Fanless |
| Power Consumption | Maximum (PoE on): 60.2W (220V/50Hz) Maximum (PoE off): 3.2W (220V/50Hz) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, User Guide |
| Consumption | 2.3 watts (max. no PD connected) 59.3 watts (max. with 57w PD connected) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
UPC Code
0845973020682
