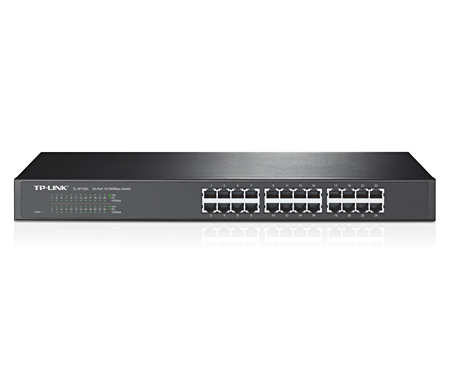

TP LINK 24 PORT 10/100M SWITCH
Highlights:
- 24 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 40%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
Overview:
What This Product Does
The 24-Port Fast Ethernet Switch TL-SF1024 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1024 provides 24 10/100Mbps ports. The TL-SF1024 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Superior Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly.
Features
- Innovative energy-efficient technology saves power up to 40%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 4.8Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store and Forward
- Compact size design for desktops, Rackmountable
- Plug and Play design simplifies installation
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m) |
| Fan Quantity | Fanless |
| Dimensions ( W x D x H ) | 17.3*7.1*1.7 in. (440*180*44 mm) |
| Power Consumption | Maximum: 3.53W (220V/50Hz) |
| Power Supply | 100-240VAC, 50/60Hz |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 4.8Gbps |
| MAC Address Table | 8K |
| Buffer Memory | 2Mb |
| Packet Forwarding Rate | 3.57Mpps |
| Green Technology | Innovative energy-efficient technology saves power up to 75% |
| Transfer Method | Store-and-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 24-Port 10/100Mbps Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet |
| System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
