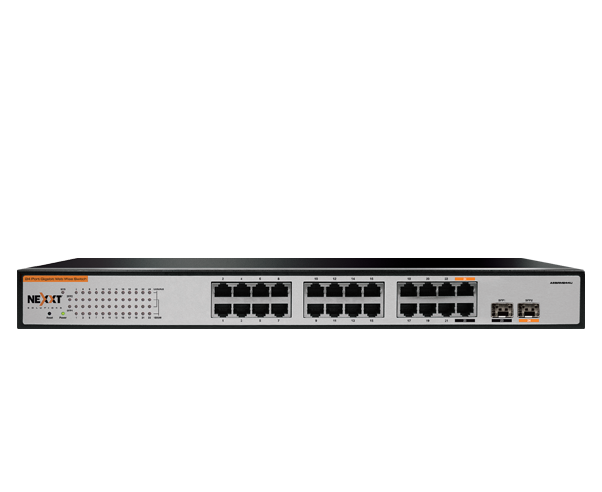

NEXXT ASBRM244U 24 Port Gigabit
Webwise 16/24-port Gigabit Ethernet Switch
Model: ASBRM164U
The Gigabit WebWise is a smart switch, specially designed for small to medium businesses that require high performance network connectivity along with advanced web management capabilities. It features 16/24 10/100/1000Mbps UTP/STP RJ-45 ports with auto MDI/MDIX and two SFP shared expansion slots supporting GBIC modules. A network range can be extended from 100 m to over 80 km using the SFP optical interface. Web-based management capabilities include port mirroring, VLAN, QoS, port security, trunking, and traffic monitoring. Its standard 19 inch rack-mountable case and intelligent management capabilities make it the ideal choice for small and medium sized networks.
Blazing-speed networking solution
Optimized to meet the demands of small and medium-sized business networks, this switch provides ultrafast and reliable access to network resources and critical applications by allowing you to connect up to sixteen (16) devices to your network at speeds of 10/100/1000 Mbps.
Ethernet standards
Complies with IEEE802.3, IEEE802.3u, and IEEE802.3ab, for greater adaptability to different Ethernet environments
Architecture
Full wire speed Store-and-Forward technology instantly eliminates bad packets.
Flow control
Back pressure to operate on half-duplex mode, and IEEE 802.3x to operate on full duplex mode.
Hassle-free
Plug and play installation, no configuration required.
Specifications
- Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x standards
- All RJ-45 ports operating at 10/100/1000Mbps, supporting 802.3 NWAY auto-negotiation, duplex mode and flow control
- Supports IEEE802.3x flow control for full-duplex, and backpressure flow control for half-duplex
- Each RJ-45 port supports auto-MDI/MDIX selection for easy integration into a network
- Layer 2 Ethernet switch
