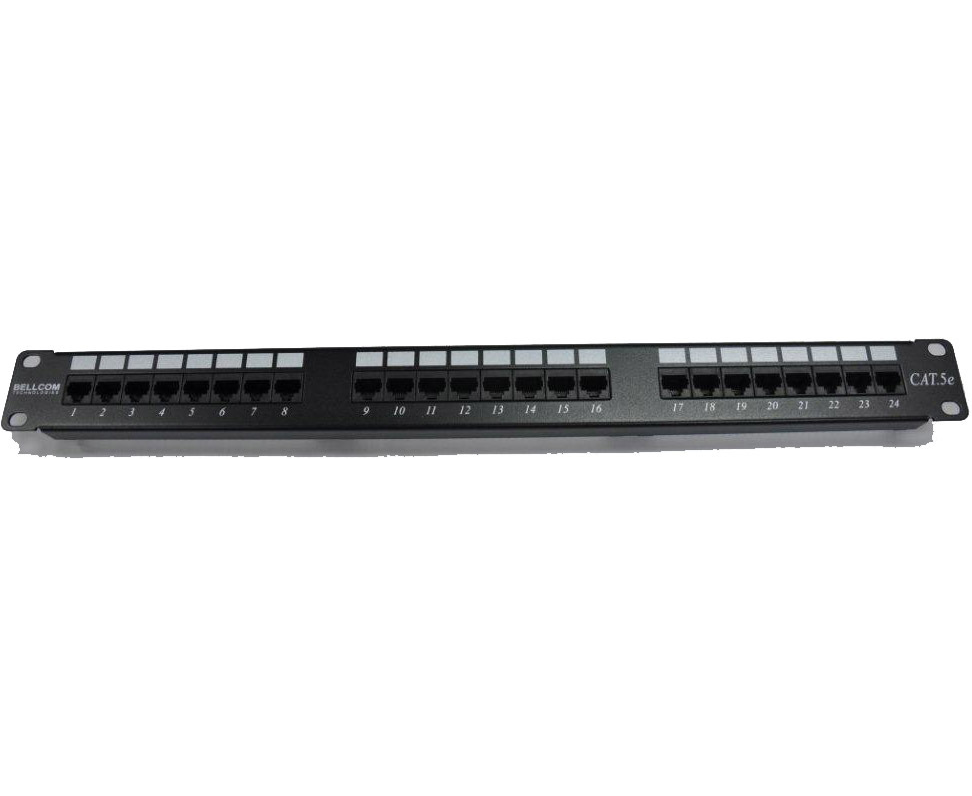

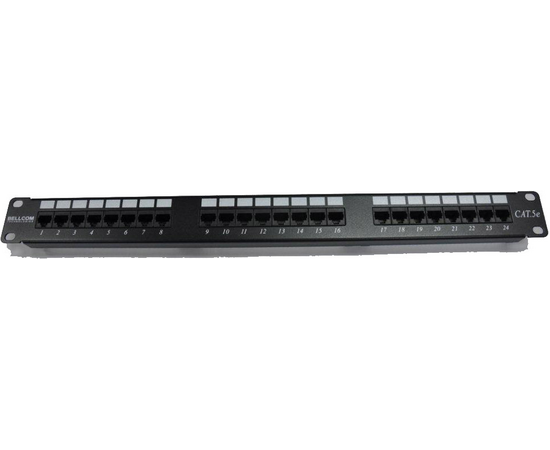

Bellcom 24 Port Cat5E Patch Panel
Typical Specification:
With professional structure design, our Category 5 UTP patch panels areextremely durable for punching down strongly. With 110 and dual type IDCdesign, accepts 110 and Krone type punch down tools, and 23-26AWGsolid and stranded UTP cables. Writable & erasable marking surfaces foreach port on the front panel for efficient system management.
Features:
Features:
Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 Specification.
Supports T568 A&B Wiring & Easy Installation.
IDC Connector can Accept 23-26 AWG Solid and Stranded Cables.
Backward Compatible to Category 5 or 3.
Offers Total Solution of Your Local Networking Area.
Terminate Using 110 or Krone Tools.
Applications:
Supports T568 A&B Wiring & Easy Installation.
IDC Connector can Accept 23-26 AWG Solid and Stranded Cables.
Backward Compatible to Category 5 or 3.
Offers Total Solution of Your Local Networking Area.
Terminate Using 110 or Krone Tools.
Applications:
10BASE-TX Ethernet
100BASE-TX Fast Ethernet
1000BASE-T Fast Ethernet
Voice, Video and other applications.
Dielectric Strength :
1000V RMS for 1min
Insulation Resistance : 10M min
Contact Resistance :2m per contact
Temperature Range :- -10C to 60C max
Humidity :10%-65%
IDC Contact:
0.8mm thickness Phosphor Bronze,tin plating over nickel
Jack Operating life : minimum 750 insertion
IDC Operating life : minimum 250 insertions
High impact plastic housing, UL 94V-0
Jack Contact : Phosphor Bronze,50μinch thickness gold plated over nickel
Brand
Bellcom
