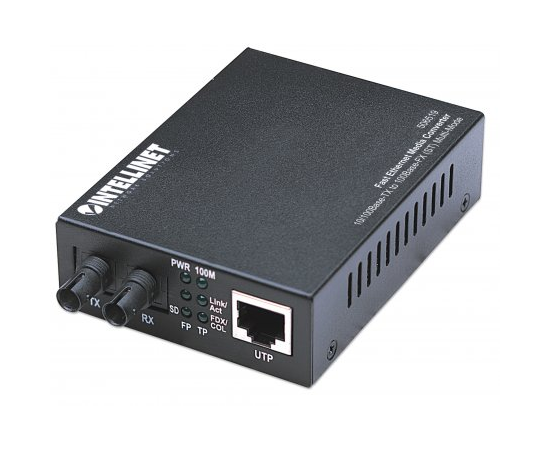

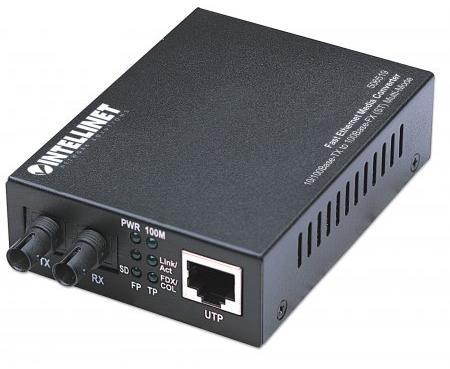

INT 10/100Base-TX to 100Base-FX(ST), 2km
The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.
Expands the Size of an Existing Network
Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
Data transfer rate: 100 Mbps
One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft.
RJ45 port with Auto MDI/MDI-X support and auto-negotiation
One 100Base-FX multi-mode Fiber ST duplex port
Fiber distance support: up to 2 km / 1.24 mi (62.5/125 or 50/125 µm cable)
Wavelength: 1310 nm
Flow control
Status LEDs for power and Link/TX for both ports
External power adapter, 5 V DC
Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
Three-Year Warranty; Standards
IEEE 802.3 (Twisted Pair Ethernet)
IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
General
Media support:
- 100Base-TX Cat3 or higher UTP/STP RJ45, EIA/TIA 568
- 100Base-FX multi-mode 62.5/125 or 50/125 µm Fiber
Connectors:
- One RJ45 port, 100Base-TX
- One Fiber ST duplex port, 100Base-FX
Distances:
- 2 km / 1.24 mi (62.5/125 or 50/125 µm fiber cable)
- 100 m / 300 ft (RJ45 cable)
Wavelength: 1310 nm
Min. TX power: -22 dBm
Max. TX power: -12 dBm
RX sensitivity: -30 dBm
Signal loss: 2 dB/km
Certifications: FCC Class B, CE
LEDs
Power
LINK/ACT for RJ45 port
LINK/ACT for Fiber ST port
100 Mbps link speed indicator for RJ45 port
Optical signal input LED
Full-/half duplex
Power
External power adapter, 5 VDC, 1 A
Power consumption: 2.5 watts (maximum)
Environmental
Metal housing
Dimensions: 107 (L) x 70 (W) x 26 (H) mm (4.2 x 2.8 x 1.0 in.)
Weight: 500 g (1.1 lbs.)
Operating temperature: 0 – 70°C (32 – 158°F)
Operating humidity: 10 – 90% RH, non-condensing
Storage temperature: -45 – 80°C (-49 – 176°F)
Package Contents
Fast Ethernet Media Converter
External power adapter
User manual
