Dahua UTP Dah Cat 6 Cable DH-PFM9201-6UN-C

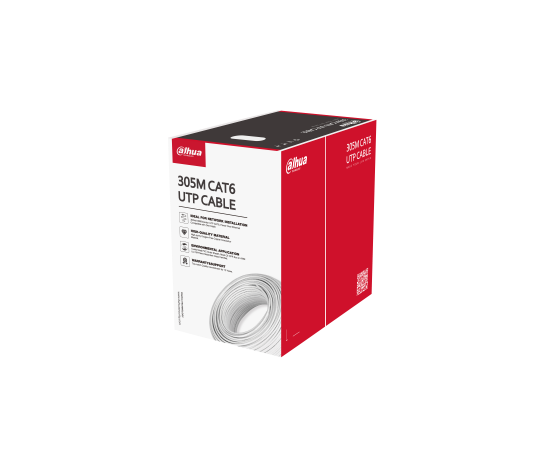

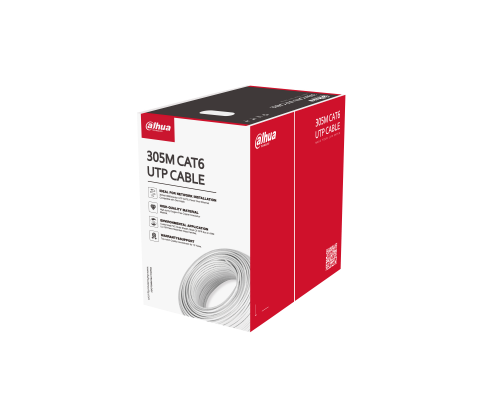

Dahua CAT-6 Cable 305mtr DH-PFM9201-6UN-C

305m UTP CAT6;  Support PoE long-distance transmission;  Excellent OFC with 99.99% OFC(oxygen free copper) purity;  Environmentally-friendly outer sheath, meet the CPR E/ UL CM class;  Top-notch quality guarantee for 10 years

Technical Specifications

Conductor Material OFC(oxygen free copper) Structure 4P*0.53± 0.01mm Insulation Material HDPE Min. average thickness 0.21mm Diameter 0.95mm±0.05mm Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown,

white/brown Rip cord Yes Jacket Material PVC, meet the requirement of CPR E class PVC, meet the requirement of UL CM class Min. average thickness 0.40mm Diameter 6.0± 0.50mm surface Smooth, full and tight Color Orange and white are optional General Length 305m(1000.66ft)

412mmx412mmx215mm(16.22”x16.22”x8.46”)t(with packaging)  Mechanical properties Insulation Tensile strength ≥16MPa Elongation at break ≥300% Peeling property No damage to insulation or conductor Jacket Tensile strength Before aging: ≥13.5MPa After aging: ≥12.5MPa Before aging: ≥13.5MPa Retention rate of tensile strength after aging: ≥85% Elongation at break

Before aging: ≥150% After aging: ≥125% Before aging: ≥150% Retention rate of elongation at break after aging: ≥50% Aging condition 100℃*24h*7d Peeling property No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. No damage to insulation, cold bending (-15C *4h), the outer diameter of the cable is 8 times, without cracking. Electrical performance (20℃)

Characteristic impedance (1-250MHz) 100±15Ω DC resistance ≤9.38Ω/100m Max. unbalance rate of line pairs’ direct current ≤5% Time delay ≤45ns/100m Cable Series | DH-PFM920I-6UN-C/U Rev 001.001 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com Max.

mutual capacitance 5.6nF/100m Min. insulation resistance 5000MΩ·km Order Information Type Part Number Description Cable Series DH-PFM920I-5EUN 305m UTP CAT5E cable _Dahua brand; CPR E class; Distribution DH-PFM920I-5EU-C 305m
