With an entirely new 22nm process, the 3nd generation Intel Core i7-3770 Processor achieves dramatic performance gain at low operating voltage. The integrated graphics chip HD Graphics 4000 has been beefed up with more horsepower, the memory controller has been updated to officially support DDR3 1600 or 1333, and there's support for the new PCI Express 3.0 standard. With top-of-the-line speed complemented by Intel Turbo Boost Technology 2.0, a rich set of features, and Intel Hyper-Threading Technology, it delivers 3rd generation visibly smart performance at its best with the flexibility to set your system specs just the way you like.
newegg INTEL REVOLUTIONARY 22NM TRANSISTORS TECHNOLOGY Transistors have now entered the third dimension. Intel brings 22nm 3-D Tri-Gate transistors (the core of microprocessors) to its third generation Core processors Ivy Bridge. Intel's 3-D Tri-Gate transistors are an important innovation needed to continue Moore's law and deliver an unprecedented combination of performance and power efficiency. By forming conducting channels on three sides of a vertical fin structure, Tri-Gate transistors can have multiple fins connected together to increase total drive strength for higher performance. The new 22nm 3-D Tri-Gate transistors can deliver up to 37% performance increase at low voltage and more than 50% power reduction at low voltage.
General information
|
|
Type
|
CPU / Microprocessor
|
Market segment
|
Desktop
|
Family
|
Intel Core i7
|
Model number
|
i7-3770
|
CPU part numbers
|
- CM8063701211600 is an OEM/tray microprocessor

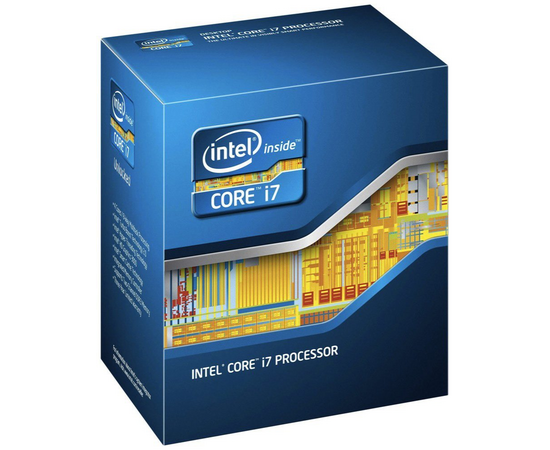

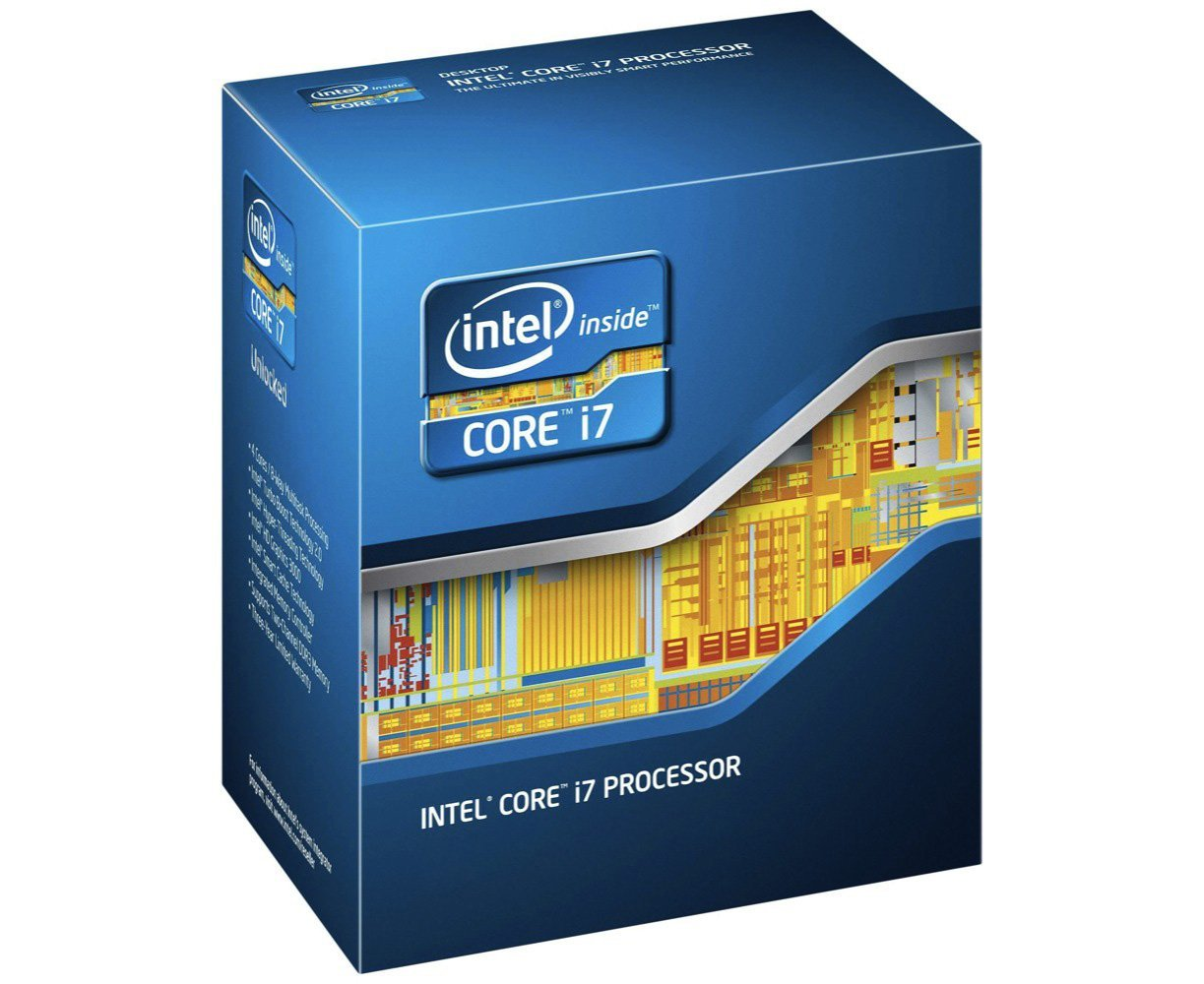

- BX80637I73770 is a boxed processor (English version)
- BXC80637I73770 is a boxed processor (Chinese version)
|
Frequency
|
3400 MHz
|
Turbo frequency
|
3900 MHz (1 or 2 cores)
3800 MHz (3 cores)
3700 MHz (4 cores)
|
Bus speed
|
5 GT/s DMI
|
Clock multiplier
|
34
|
Package
|
1155-land Flip-Chip Land Grid Array
|
Socket
|
Socket 1155 / H2 / LGA1155
|
Size
|
1.48" x 1.48" / 3.75cm x 3.75cm
|
Weight
|
1oz / 27.2g (CPU)
13oz / 368.6g (box)
|
Fan/heatsink
|
E97378-001
|
Architecture / Microarchitecture |
|
Microarchitecture | Ivy Bridge |
Processor core | Ivy Bridge |
Core stepping | E1 (SR0PK) |
Manufacturing process | 0.022 micron |
Data width | 64 bit |
The number of cores | 4 |
The number of threads | 8 |
Floating Point Unit | Integrated |
Level 1 cache size | 4 x 32 KB 8-way set associative instruction caches 4 x 32 KB 8-way set associative data caches |
Level 2 cache size | 4 x 256 KB 8-way set associative caches |
Level 3 cache size | 8 MB 16-way set associative shared cache |
Physical memory | 32 GB |
Multiprocessing | Uniprocessor |
Features | - MMX instructions
- SSE / Streaming SIMD Extensions
- SSE2 / Streaming SIMD Extensions 2
- SSE3 / Streaming SIMD Extensions 3
- SSSE3 / Supplemental Streaming SIMD Extensions 3
- SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
- AES / Advanced Encryption Standard instructions
- AVX / Advanced Vector Extensions
- F16C / 16-bit Floating-Point conversion instructions
- EM64T / Extended Memory 64 technology / Intel 64
- NX / XD / Execute disable bit
- HT / Hyper-Threading technology
- TBT 2.0 / Turbo Boost technology 2.0
- VT-x / Virtualization technology
- VT-d / Virtualization for directed I/O
- TXT / Trusted Execution technology
|
Low power features | Enhanced SpeedStep technology |
Integrated peripherals / components |
|
Integrated graphics | - GPU Type: HD 4000
Base frequency (MHz): 650 Maximum frequency (MHz): 1150 The number of supported displays: 3
|
Memory controller | - The number of controllers: 1
Memory channels: 2 Supported memory: DDR3-1333, DDR3-1600 Maximum memory bandwidth (GB/s): 25.6
|
Other peripherals | - Direct Media Interface 2.0
- PCI Express 3.0 interface
|
Electrical / Thermal parameters |
|
Maximum operating temperature | 105°C |
Thermal Design Power | 77 Watt |
Notes on Intel Core i7-3770 |
|
- Also ships as an embedded microprocessor
- The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology and Anti-Theft technology.
- The CPU is compatible with DirectX 11.0, OpenGL 4.0 and OpenCL 1.2 APIs.
- The graphics unit has the following software features enabled: Intel Quick Sync Video, Wireless Display, Insider, InTru 3D technology and Clear Video HD technology.
|
