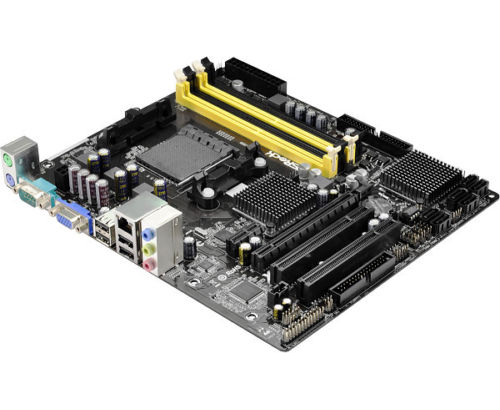

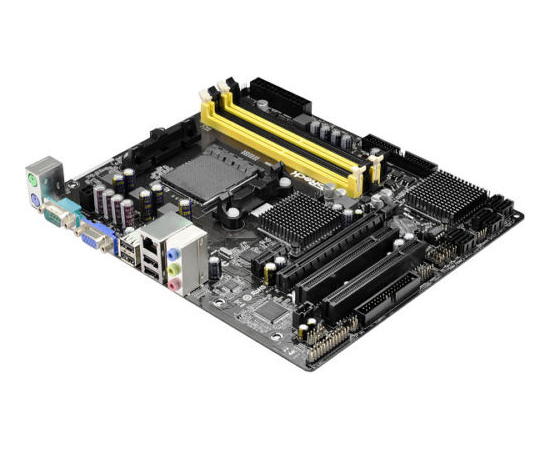

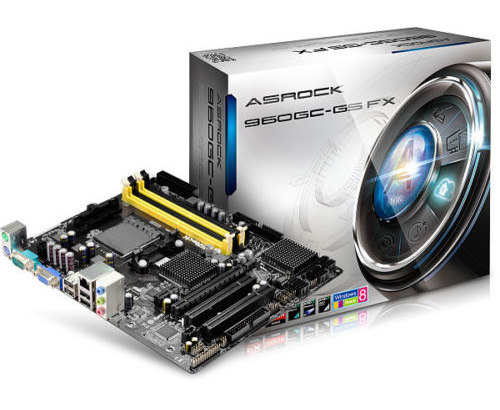

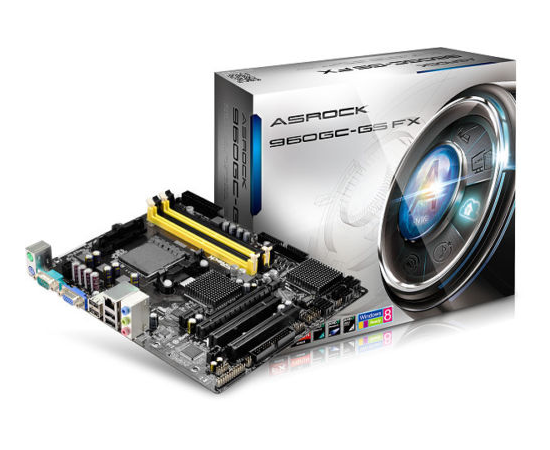

Asrock AMD 960G AM3+ 2-DDR3-DDR2-D-Sub
Product Specifications
| General | |
| CPU | - Support up to 95W Socket AM3+ processors - Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors - Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor - Supports 8-Core CPU - Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration) - Supports AMD's Cool 'n' Quiet Technology - FSB 2600 MHz (5.2 GT/s) - Supports Untied Overclocking Technology - Supports Hyper-Transport 3.0 (HT 3.0) Technology |
| Chipset | - Northbridge: AMD 760G - Southbridge: AMD SB710 |
| Memory | - Dual Channel DDR3/DDR2 Memory Technology* - 2 x DDR3 DIMM Slots** - Supports DDR3 1866(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB*** - 2 x DDR2 DIMM Slots**** - Supports DDR2 1066*****/800/667/533 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB*** *DDR3 and DDR2 are supported separately. **DDR3 memory is only supported by installing AM3/AM3+ CPU. ***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. ****DDR2 memory is only supported by installing AM2/AM2+/AM3 CPU. *****Support with AM3 / AM2+ CPU. |
| BIOS | - 16Mb AMI legal BIOS - Supports "Plug and Play" - ACPI 1.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3.1 support - CPU, VCCM, NB Voltage multi-adjustment |
| Audio, Video and Networking | |
| Graphics | - Integrated AMD Radeon 3000 graphics - DX10 class iGPU, Pixel Shader 4.0 - Max. shared memory 512MB - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111G - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x16 mode) - 1 x PCI Express 2.0 x1 Slot - 2 x PCI Slots |
| Storage | - 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug |
| Connector | - 1 x ATA133 IDE Connector (Supports 2 x IDE devices) - 1 x Floppy Connector - 1 x IR Header - 1 x Print Port Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (4-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x Power Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x CD In Header - 1 x Front Panel Audio Connector - 1 x SPDIF Out Connector - 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) |
| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x D-Sub Port - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Unique Feature | - ASRock OC Tuner - ASRock Intelligent Energy Saver - ASRock Instant Boot - ASRock Instant Flash - ASRock OC DNA - ASRock APP Charger - ASRock XFast USB - ASRock XFast LAN - ASRock XFast RAM - ASRock X-Boost - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis/Power Fan Tachometer - CPU Quiet Fan - CPU Fan multi-speed control - CASE OPEN detection - Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
| Form Factor | - Micro ATX Form Factor |
| OS | - Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
