Gigabyte B85M-D2V 1150 Intel Mainboard

Write a review
B85MD2V
TT$714.00
(TT$803.25 inc tax)
Currently Unavailable. Call (868) 638-4336 for updates.
30 days
Add to wish list
Delivery Options
  • Deliver to your Door! or
    Collect In-Store

Payment options
Our advantages
  • — Warranty Available
  • — Return and exchange
  • — Different payment methods
  • — Best price in T&T

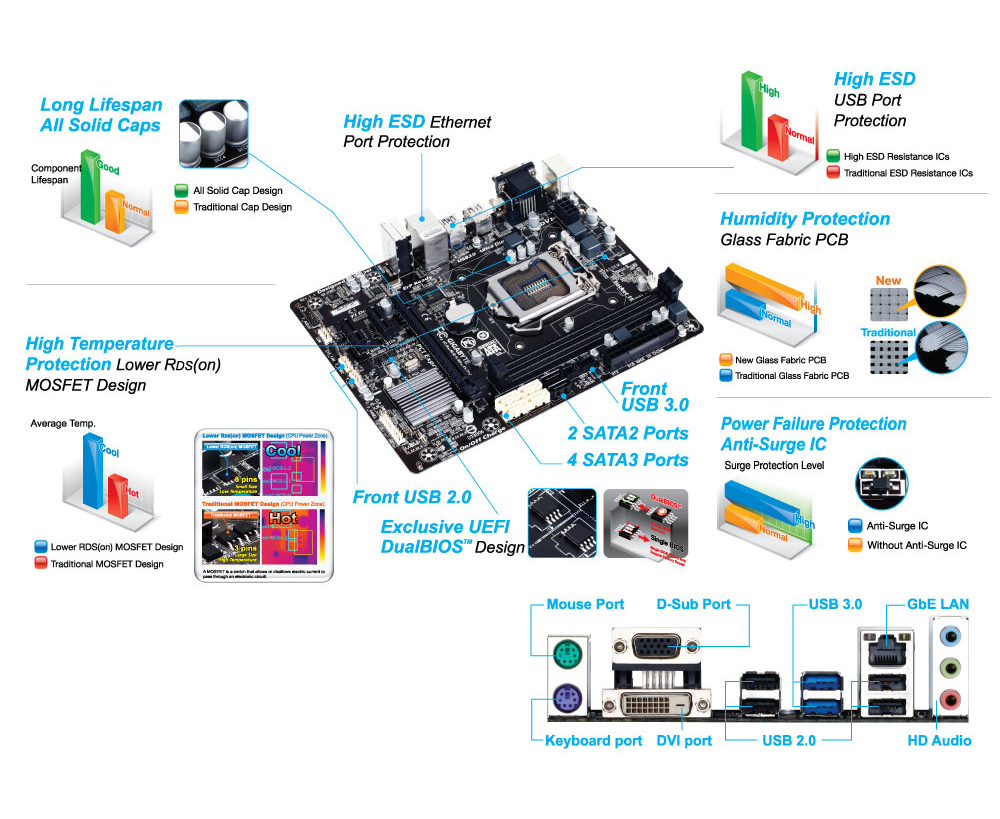

GIGABYTE 8 Series Motherboards
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.

Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® B85 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.

DVI Support
DVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).

LAN Optimizer - Intelligent optimization network management tool
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.

GIGABYTE App Center
GIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

  • Supports 4th Generation Intel® Core™ processors
  • GIGABYTE Ultra Durable™ 4 Plus Technology
  • GIGABYTE UEFI DualBIOS™
  • GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
  • GIGABYTE On/Off Charge™ for USB devices
  • LAN with high ESD Protection
  • DVI, D-SUB

Technical Specification:

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
  2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
  1. Intel® B85 Express Chipset
Memory
  1. 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
  2. Dual channel memory architecture
  3. Support for DDR3 1600/1333 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor - Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
  2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
    * The DVI-D port does not support D-Sub connection by adapter.
  3. Maximum shared memory of 1 GB
Audio
  1. Realtek® ALC887 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
  1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  2. 2 x PCI Express x1 slot
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage InterfaceChipset:
  1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3)
  2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5)
USBChipset:
  1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 4 x SATA 6Gb/s connectors
  4. 2 x SATA 3Gb/s connectors
  5. 1 x CPU fan header
  6. 1 x system fan header
  7. 1 x front panel header
  8. 1 x front panel audio header
  9. 1 x USB 3.0/2.0 header
  10. 2 x USB 2.0/1.1 headers
  11. 1 x serial port header
  12. 1 x Clear CMOS jumper

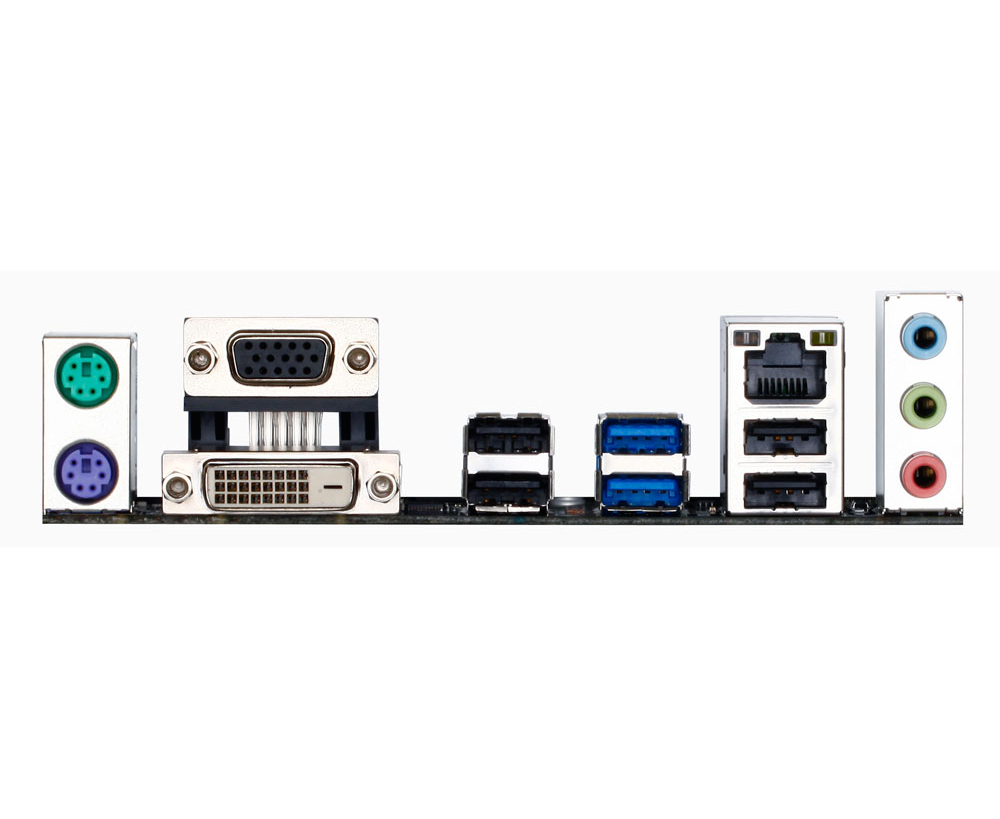

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 1 x DVI-D port
  5. 2 x USB 3.0/2.0 ports
  6. 4 x USB 2.0/1.1 ports
  7. 1 x RJ-45 port
  8. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
  1. iTE® I/O Controller Chip
H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU/System overheating warning
  5. CPU/System fan fail warning
  6. CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AMI EFI BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
  1. Support for Q-Flash
  2. Support for Xpress Install
  3. Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    USB Blocker
    Smart TimeLock
    Smart Recovery 2
  4. Support for ON/OFF Charge
Bundle Software
  1. Norton® Internet Security (OEM version)
  2. Intel® Rapid Start Technology
  3. Intel® Smart Connect Technology
Operating System
  1. Support for Windows 8/7
Form Factor
  1. Micro ATX Form Factor; 22.6cm x 17.4cm
Brand
Gigabyte
UPC Code
0818313018618
