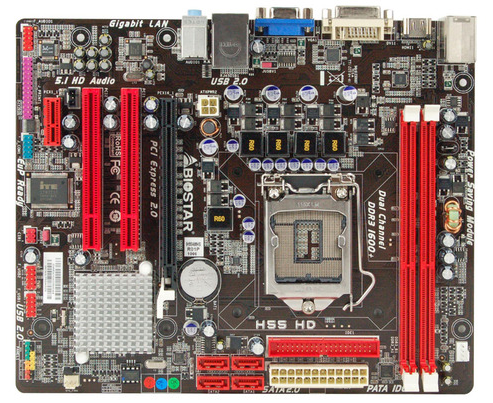

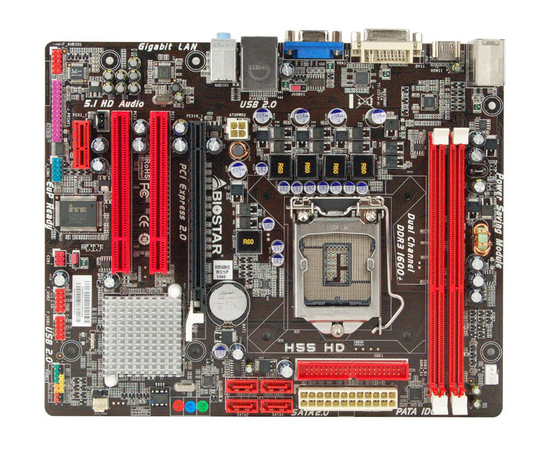

Biostar H55 1156 Mainboard DDR3
- Supports the Intel Core i7 / i5 / i3 / Pentium Processors in the LGA1156 Package
- Intel H55 single chip architecture
- 5 Phases Power Design
- Support 2-DIMM 1600(OC)/1333/1066
- Integrated HDMI/DVI interface with HDCP Supporting all HD formats including 720P, 1080i, 1080P. ( Required processors with Intel HD Graphics )
- CPU integrated Graphics performance tunable via BIOS
- Optimized to deliver full windows 7 Experience
- Supports BIO-Remote 2 Technology
- Supports Charger Booster Technology
Chipset Intel H55 CPU SUPPORT Intel® Core™ i7 LGA 1156 Processor
Intel® Core™ i5 LGA 1156 Processor
Intel® Core™ i3 LGA 1156 Processor
Intel® Pentium® LGA 1156 Processor
Maximum CPU TDP (Thermal Design Power) : 95WattMEMORY Support Dual Channel DDR3 1600(OC)/1333/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 8GB MemoryEXPANSION SLOT 1 x PCI-E x16 2.0 Slot
1 x PCI-E x1 2.0 Slot
2 x PCI SlotSTORAGE 4 x SATA2 Connector
1 x IDE ConnectorUSB 4 x USB 2.0 Port

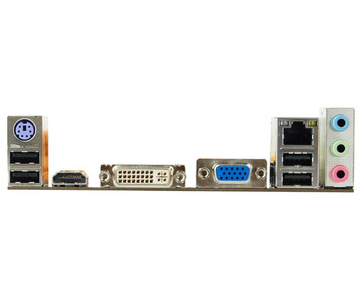

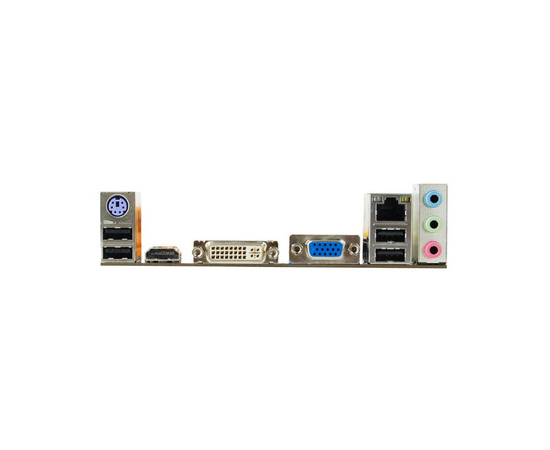

2 x USB 2.0 HeaderLAN Realtek RTL8111DL - 10/100/1000 Controller INTEGRATED VIDEO By CPU model CODEC Realtek ALC662 6-Channel HD Audio REAR I/O 1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x HDMI Connector
1 x DVI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio ConnectorINTERNAL I/O 1 x Printer Header
2 x USB 2.0 Header
4 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-OUT Header
1 x CPU FAN Header
1 x System FAN Header
1 x Serial Header
1 x CIR HeaderDIMENSION Micro ATX Form Factor Dimension: 24.4cm X 20cm ( W x L ) OS SUPPORT Support Windows 2000 / XP / Vista / 7 Bundle Software BIO-Remote ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x CD Driver
1 x Quick GuideFEATURES Windows 7 Compatible
Supports Solid capacitor
Supports BIOS-Flasher
