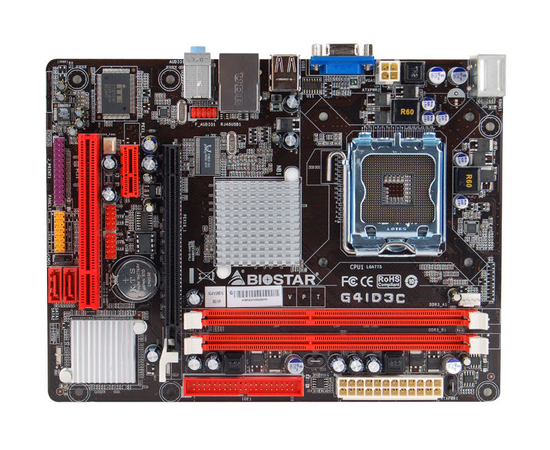

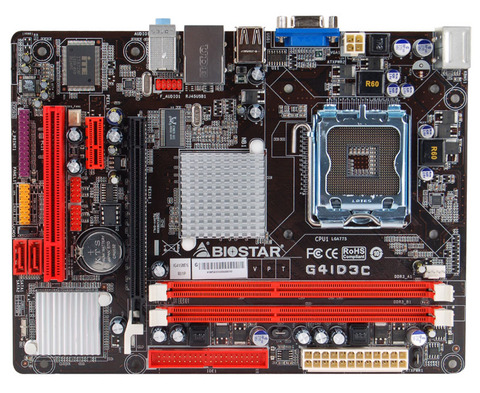

Biostar G41D3C Intel 775 Mainboard
- Socket LGA 775
- Supported Intel Core 2 Quad/Core 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron D/Celeron 400 Series Processor
- Supported FSB 800/1066/1333MHz
- Supported 2 DIMM of DDR3 1333/1066/800MHz
- Supports BIO-Remote 2 Technology
Chipset Intel G41 / ICH7 CPU SUPPORT Intel® Core™2 Quad Processor
Intel® Core™2 Duo Processor
Intel® Pentium® Dual-Core Processor
Intel® Celeron® Dual-Core Processor
Intel® Celeron® D Processor
Intel® Celeron® Processor 400 Sequence
Maximum CPU TDP (Thermal Design Power) : 95WattFSB Support FSB 1333/1066/800/533MHz MEMORY Support Dual Channel DDR3 1333(OC)/1066/800 MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 8GB Memory
Note: FSB800 CPU only support DDR3-800EXPANSION SLOT 1 x PCI-E x16 Slot
1 x PCI-E x1 Slot
1 x PCI SlotSTORAGE 2 x SATA2 Connector
1 x IDE ConnectorUSB 4 x USB 2.0 Port
2 x USB 2.0 HeaderLAN Atheros AR8158 - 10/100 Controller INTEGRATED VIDEO Intel Graphics Media Accelerator X4500.
Support RGB with max. resolution 2048 x 1536@75Hz
Max. shared memory 1759MB(DVMT) *
Supports DX10

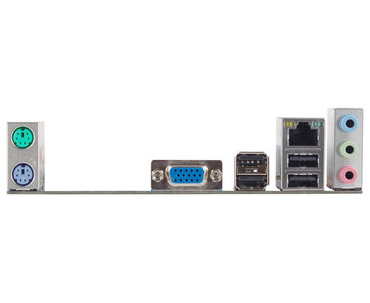

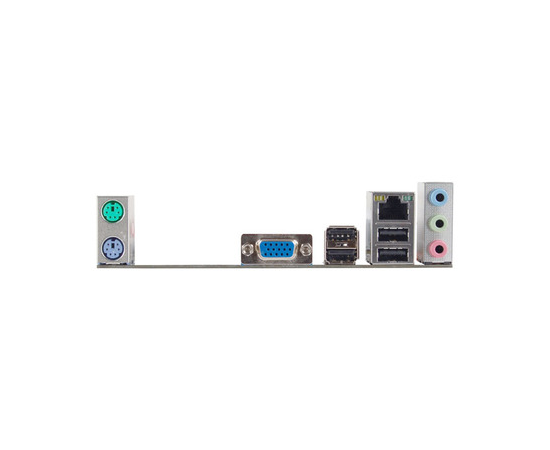

* The Max shared memory size will be available only when 4GB memory or more installed on Motherboard under the 64-bit OS.CODEC VIA VT1708B 6-Channel HD Audio REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 2.0 Port
1 x VGA Port
1 x RJ-45 Port
3 x Audio ConnectorINTERNAL I/O 1 x Printer Header
2 x USB 2.0 Header
2 x SATA2 3Gb/s Connector
1 x IDE Connector
1 x Front Audio Header
1 x Front Panel Header
1 x CPU FAN Header
1 x System FAN HeaderDIMENSION Micro ATX Form Factor Dimension: 22.5cm x 17cm ( W x L ) OS SUPPORT Support Windows XP / Vista / 7 / 8 ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x CD Driver
1 x Quick GuideFEATURES Windows 8 Ready
Supports Solid capacitor
Supports BIOS-Flasher
