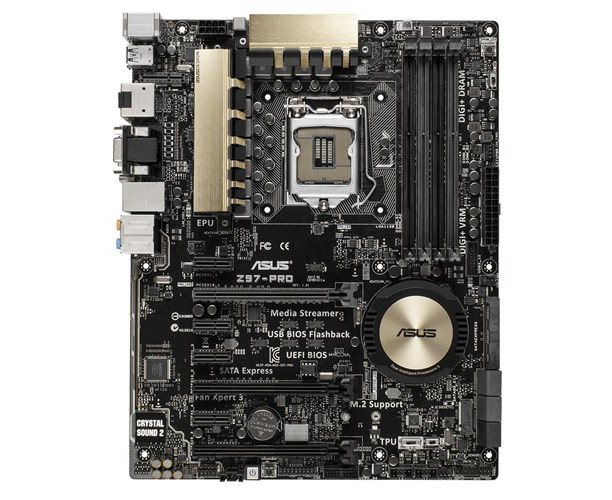

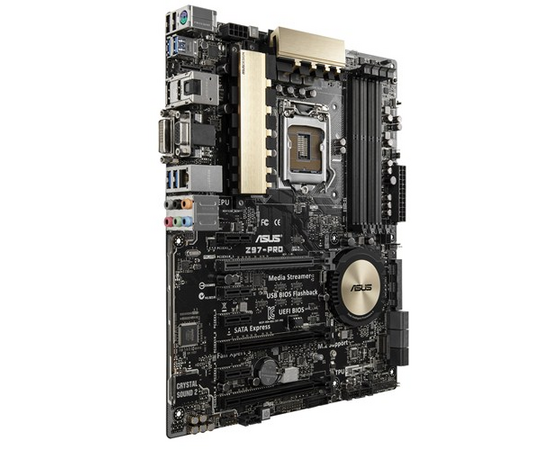

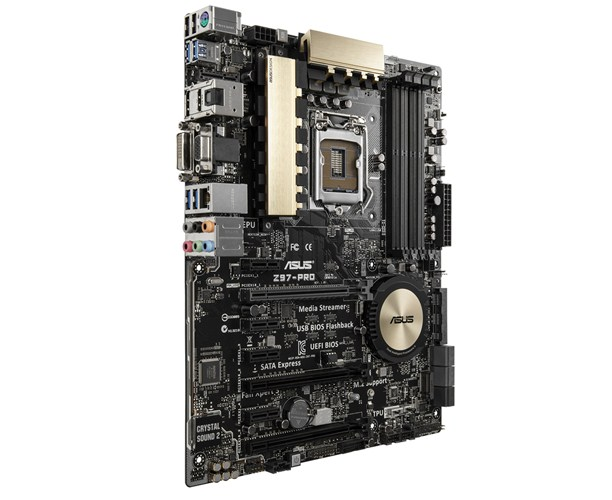

Asus Z97 Pro LGA 1150 Mainboard

One-click total system optimization!

• 5-Way Optimization by Dual Intelligent Processors 5 – One click, total system optimization!
• M.2 & SATA Express - Speed up your system with lightning-fast 10Gb/s transfer speed
• Crystal Sound 2 and Intel Gigabit Ethernet — a game-winning combo!
• ASUS HomeCloud - Access your PC remotely and stream multimedia content anywhere, anytime
• Proven quality – 5X Protection. 1000+ compatible devices. 7000+ validation hours.
• CPU
  Intel® Socket 1150 for the 5^th/New 4^th/4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z97
• Memory
  4 x DIMM, Max. 32GB, DDR3 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
  Maximum shared memory of 512 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
  DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
• Multi-GPU Support
  Supports NVIDIA® Quad-GPU SLI™ Technology
  Supports AMD 3-Way CrossFireX™ Technology
• Expansion Slots
  2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
  1 x PCIe 2.0 x16 (x4 mode) *¹
  4 x PCIe 2.0 x1 *²
• Storage
  Intel® Z97 chipset :
  1 x SATA Express port, compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*³
  4 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology *⁴
  ASMedia® PCIe SATA controller : *⁵
  2 x SATA 6Gb/s port(s), black
• LAN
  Intel® I218V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
  Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
• Audio
  Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2
  - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  - High quality 112 dB SNR stereo playback output and 104 dB SNR recording input
  Audio Feature :
  - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
  - DTS Ultra PC II
  - DTS Connect
  - Optical S/PDIF out port(s) at back panel
  - BD Audio Layer Content Protection
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Audio amplifier: Provides the highest-quality sound for headphone and speakers
  - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
  - Top notch audio sensation delivers according to the audio configuration
  - EMI protection cover to prevent electrical noise to affect the amplifier quality
• USB Ports
  Intel® Z97 chipset :
  6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
  Intel® Z97 chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
  ASMedia® USB 3.0 controller :
  2 x USB port(s) (2 at back panel, blue)
• Special Features
  5-Way Optimization by Dual Intelligent Processors 5
  - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 12 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS TPU :
  - Auto Tuning
  - GPU Boost
  - TPU switch
  ASUS EPU :
  - EPU
  - EPU switch
  ASUS Digital Power Design :
  - Industry leading Digital 12 Phase Power Design
  - Industry leading Digital 2 Phase DRAM Power Design
  - CPU Power Utility
  - DRAM Power Utility
  ASUS Exclusive Features :
  - Remote GO!
  - AI Suite 3
  - Ai Charger+
  - USB Charger+
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - USB 3.0 Boost
  - Disk Unlocker
  - Turbo LAN
  - Crystal Sound 2
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  ASUS EZ DIY :
  - Precision Tweaker 2
  - ASUS O.C. Tuner
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS USB BIOS Flashback
  - ASUS UEFI BIOS EZ Mode
  - Push Notice
  ASUS Q-Design :
  - ASUS Q-Shield
  - ASUS Q-Code
  - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
  - ASUS Q-Slot
  - ASUS Q-DIMM
  - ASUS Q-Connector
  Special Memory O.C. Design
  Overclocking Protection :
  - ASUS C.P.R.(CPU Parameter Recall)
  Media Streamer
  Turbo App
  Fan Xpert 3
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7

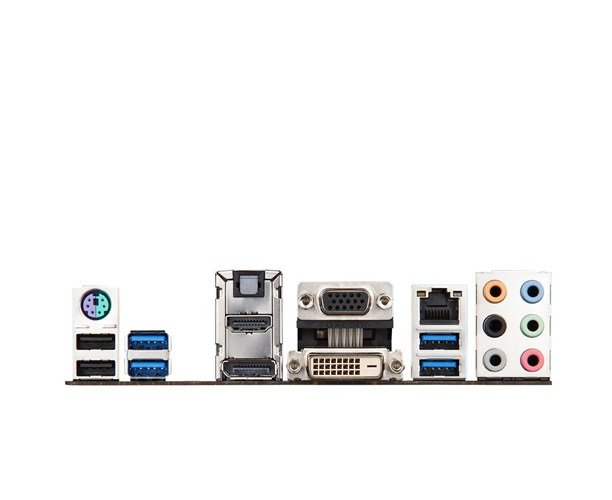

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x DisplayPort
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.0 (blue)
  2 x USB 2.0
  1 x Optical S/PDIF out
  6 x Audio jack(s)
• Internal I/O Ports
  2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x SATA Express connector: black, compatible with 2 x SATA 6.0 Gb/s ports
  1 x M.2 Socket 3 for M Key, type 2260/2280 devices
  1 x TPM header
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x CPU OPT Fan connector(s) (1 x 4 -pin)
  4 x Chassis Fan connector(s) (4 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x Thunderbolt header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x EZ XMP switch
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s) (Q-Connector)
  1 x DRCT header(s)
  1 x MemOK! button(s)
  1 x TPU switch(es)
  1 x EPU switch(es)
  1 x Power-on button(s)
  1 x Clear CMOS jumper(s)
  1 x USB BIOS Flashback button(s)

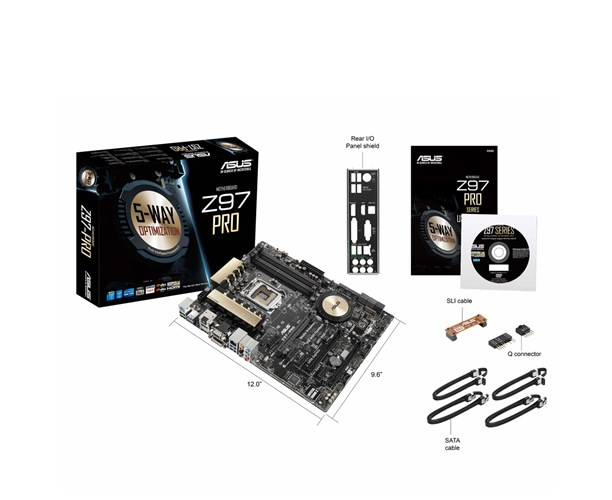

• Accessories
  User's manual
  ASUS Q-Shield
  4 x SATA 6Gb/s cable(s)
  1 x SLI bridge(s)
  1 x Q-connector(s) (2 in 1)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS,
  ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
  F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.7, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• Note
  *1 : The PCIe x16_3 slot shares bandwidth with USB3_E12 and PCIe x1_4. The PCIe x16_3 is default at x1 mode.
  *2 : The PCIe x1_2 slot shares bandwidth with PCIe x1_3. The PCIe x1_2 is default disabled.
  *3 : M.2 Socket 3 shares bandwidth with SATAExpress_1
  *4 : These functions will work depending on the CPU installed.
  *5 : These SATA ports are for data hard drivers only. ATAPI devices are not supported.
