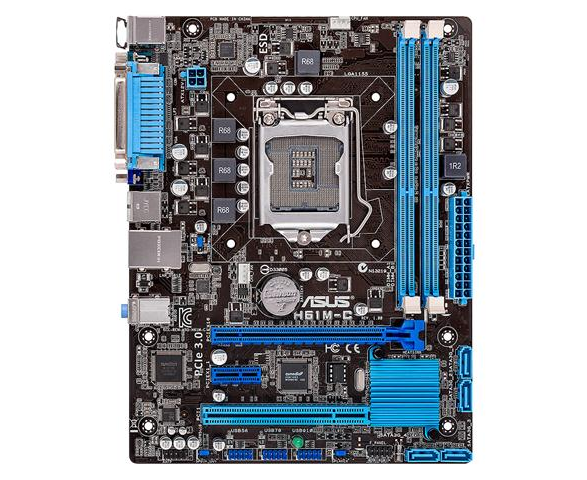

ASUS H61M-C LGA 1155 Mainboard

Intuitive UEFI BIOS and easy network controls on H61 platform

• UEFI BIOS - Flexible & Easy BIOS Interface
• Network iControl - Regulate Network Bandwidth Real-time
• Anti-Surge - Full-time Power Guardian-Make System Free From Risk
• ESD Protection - Protect Your Computer with ESD Guards
• AI Suite II - One-stop Access to Innovative ASUS Features
• CPU
  Intel® Socket 1155 for 3^rd/2^nd Generation Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® 32 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® H61
• Memory
  2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
• Graphic
  Integrated Graphics Processor
  - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz
  Maximum shared memory of 1696 MB
• Expansion Slots
  1 x PCIe 3.0/2.0 x16
  1 x PCIe 2.0 x1
  1 x PCI
• Storage
  Intel® H61(B3) chipset :
  4 x SATA 3Gb/s port(s), black
• LAN
  Realtek® 8111F, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
• USB Ports
  Built-in Controller :
  10 x USB 2.0 port(s) (4 at back panel, , 6 at mid-board)
• Special Features
  ASUS Exclusive Features :
  - AI Suite II
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  ASUS Quiet Thermal Solution :
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  - ASUS MyLogo 2
  100% All High-quality Conductive Polymer Capacitors
• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  4 x USB 2.0
  1 x COM port(s)
  1 x Parallel port(s)
  3 x Audio jack(s)
• Internal I/O Ports
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  4 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Internal speaker connector(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  I/O Shield
  2 x SATA 3Gb/s cable(s)
• BIOS
  64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready
• Manageability
  WOL, PXE, PME Wake Up
• Support Disc
  Drivers
  ASUS Utilities
  ASUS Update
  Anti-Virus Software (OEM Version)
• Form Factor
  uATX Form Factor
  9 inch x 7 inch ( 22.6 cm x 17.8 cm )
• Note
  *1:Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
