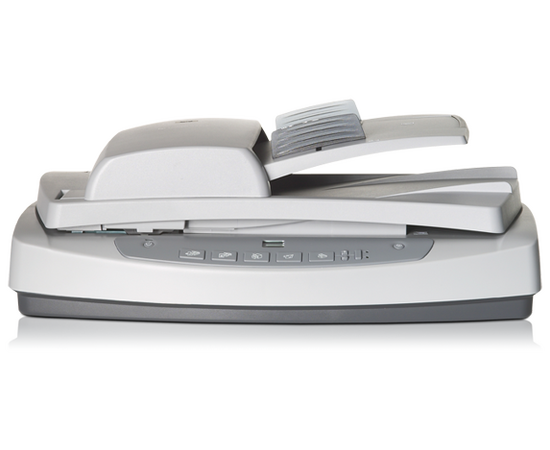

HP SCAN JET 5590 FLATBED SCANNER
- High speed, unattended document scanning with duplex automatic document feeder (ADF). Get the job done quickly with scan-to-PDF simplicity and bundled NewSoft Presto! PageManager document management software. ISIS compliance included.
Features
Get more done with automatic two-sided, multi-page scanning.
- Load up to 50 pages in automatic document feeder (ADF) and set them scanning. Automatic processing of double-sided documents for streamlined workflow. High unattendedness – digitise multi-page documents while you get on with business.
Do the job faster and return to work sooner with high speed document processing.
- Scan up to 8 pages per minute (or 4 images per minute) using the duplex ADF. No waiting around – view preview scans in about seven seconds. Store, organise and access digitised documents using bundled NewSoft Presto! PageManager software.
Digitise images from slides and negatives with included transparent materials adapter (TMA).
- Complete out-of-the-box scanning solution – capture high quality scans from 35 mm slides and negatives. Easy plug-in connection – no need to remove the standard scanner lid. TMA can also be used as a light box for viewing/selecting slides.
-
Technical specifications
-
- Scanner type
- Flatbed, ADF
- Scan resolution, optical
- Up to 2400 dpi
- Duty cycle (daily)
- Recommended daily duty cycle: 500 pages
- Bit depth
- 48-bit
- Levels of grayscale
- 256
- Multifeed detection
- No
- Transparency adapter
- Satellite (TMA); three 35 mm slides or four 35 mm negative frames
- Task speed
-
- 10 x 15 cm colour photo into Microsoft Word: less than 24 sec
- OCR a full page of text into Microsoft Word: less than 36 sec
- e-mail photo: less than 18 sec
- Scan size (flatbed), maximum
- 210 x 297 mm
- Media types
- Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index), 3-D objects, 35-mm slides and negatives (using transparent materials adapter), iron-on transfers
- Media weights, supported ADF
- 60 to 90 g/m²
- Scan file format
- Windows: BMP, JPEG, TIFF, TIFF compressed, PNG, PCX, Flashpix (FPX), PDF, PDF searchable, RTF, HTM, TXT; Macintosh: TIFF, PICT, JPEG, GIF, FlashPix, Plain Text, PDF, HTML, Rich Text
- Scan input modes
- Front-panel "scan", "copy", "e-mail", "share-to-web", "save-document-to-disc"; HP Photo & Imaging software; user application via TWAIN
- Control panel
-
- Scan, Copy, E-mail, Save to PDF, Power Save, Cancel, Copy Colour/Black and White
-
ADF specifications
-
- Automatic document feeder capacity
- Standard, 50 sheets
- Automatic document feeder speed
- Up to 8 ppm/4 ipm
- Scanning options (ADF)
- Two-sided
- Scan size (ADF), maximum
- 210 x 356 mm
- Scan size (ADF), minimum
- 89 x 127 mm
-
Compatible operating systems
-
- Compatible operating systems
- Microsoft® Windows® 2000, XP Professional and Home Edition, certified for Windows Vista™
Mac OS X (10.1.5, 10.2 or higher)
- Mac compatible
-
- Yes
-
Connectivity
-
- Connectivity, standard
-
- Hi-Speed USB 2.0
- Connectivity, optional
-
- Silex SX-DS-3000U1 Fast Ethernet USB Device Server
- Silex SX-3000GB Gigabit Ethernet USB Device Server
- Silex SX-DS-3000WAN 802.11n Wireless and Gigabit Ethernet USB Device Server
- Silex SX-DS-4000U2 High Performance Gigabit Ethernet USB Device Server
- Twain version
- Version 1.8
-
Power and operating requirements
-
- Power
- 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3Hz)
- Power consumption
- 36 watts maximum
- Energy efficiency
- ENERGY STAR® qualified
- Operating temperature range
- 5 to 40° C
- Operating humidity range
- 15 to 85% RH
-
Dimensions and weight
-
- Minimum dimensions (W x D x H)
- 488 x 340 x 162 mm
- Weight
- 5.73 kg
-
What's included
-
- Warranty
- One-year free phone support during warranty (US, CA, EMEA, AP); Phone support is free for 30 days only (African and Middle Eastern countries); Go to http://www.hp.com/support to learn about the HP award winning service and support options in your region.
- What's in the box
-
- HP Scanjet 5590 Digital Flatbed Scanner
- USB cable (compatible with USB 2.0 specifications)
- power cable
- power supply (where applicable)
- automatic document feeder (ADF)
- ADF cleaning cloth
- transparent materials adapter (TMA)
- TMA instruction sheet
- Vista errata
- User's Manual
- Setup Poster
- warranty sheet
- CD-ROM(s) with software for Windows* and Macintosh *Windows 2000 support available as web download.
- Software included
-
- CD-ROM(s) for Windows and Macintosh
- I.R.I.S. Readiris Pro for Windows
- ArcSoft Photo Studio for Windows and Macintosh
- HP Commercial Scanjet 5590 TWAIN (Windows)
- Cable included
- Yes, 1 USB
