WIRELESS N USB ADAPTER, ATHEROS, 2T2R, 2.4GHz802.11n DRAFT 2.0, 802.11g/b, ATHEROS CHIPSET
Highlights:
- Excellent N speed brings best experience for HD video streaming or Internet calls
- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
- Easy wireless security encryption at a push of the WPS button
- Supports Windows XP / Vista / 7
Overview:
What This Product Does

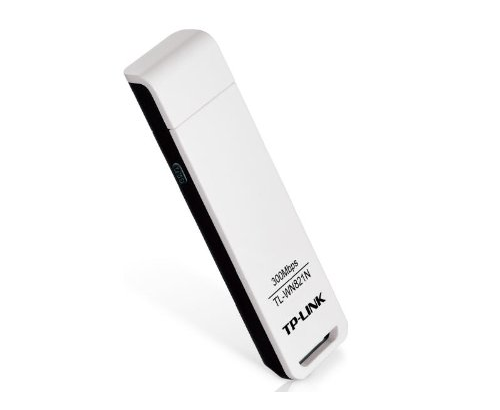

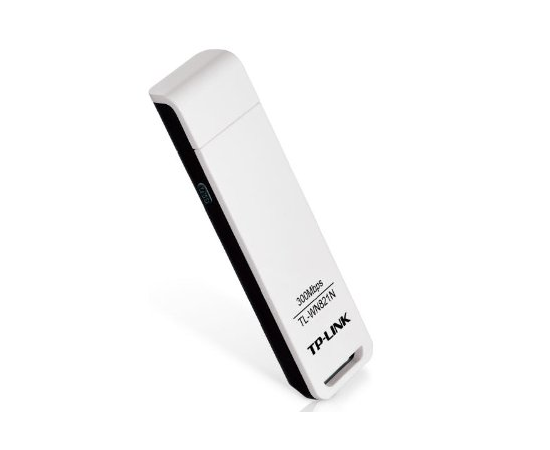

Wireless N USB Adapter TL-WN821N allows you to connect a desktop or notebook computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.
Wireless N - Speed & Range
With MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
WPA / WPA2 Encryptions - Advanced Security
As for the security of WI-FI connection, WEP encryption has been no longer the strongest and safest guards for outside intrusions. TL-WN821N provides WPA/WPA2 encryptions that are created by the WI-FI Alliance industry group, promoting interpretabilities and security for WLAN, which could effectively and efficiently protect the wireless network.
One Button Security Setup
Bundled CD for Easy Operation
TL-WN821N comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.
Features:
- 300Mbps wireless data rates ideal for video streaming, online gaming and Internet calling
- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
- Supports WPA/WPA2 mechanisms as well as WEP 64/128/152 bit encryption
- Supports Infrastructure and Ad-Hoc modes
- Supports Windows XP/Vista/7
- Fully compatible with all IEEE 802.11b/g/n products
- Supports Sony PSP X-link for online gaming for Windows XP
- Bundled CD provides easy and hassle-free installation and configuration
- Easily establish a highly secured link at a push of WPS button
Specifications:
HARDWARE FEATURES | |
---|---|
Interface | USB 2.0 |
Button | WPS Push Button |
Dimensions (W X D X H) | 2.7x 0.8 x 0.4 in. (69 x 21 x 9.5mm) |
Antenna Type | On-Board |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.400-2.4835GHz |
Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity | 270M: -62dBm@10% PER 130M: -65dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | <20dBm(EIRP) |
Wireless Modes | Ad-Hoc / Infrastructure mode |
Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |

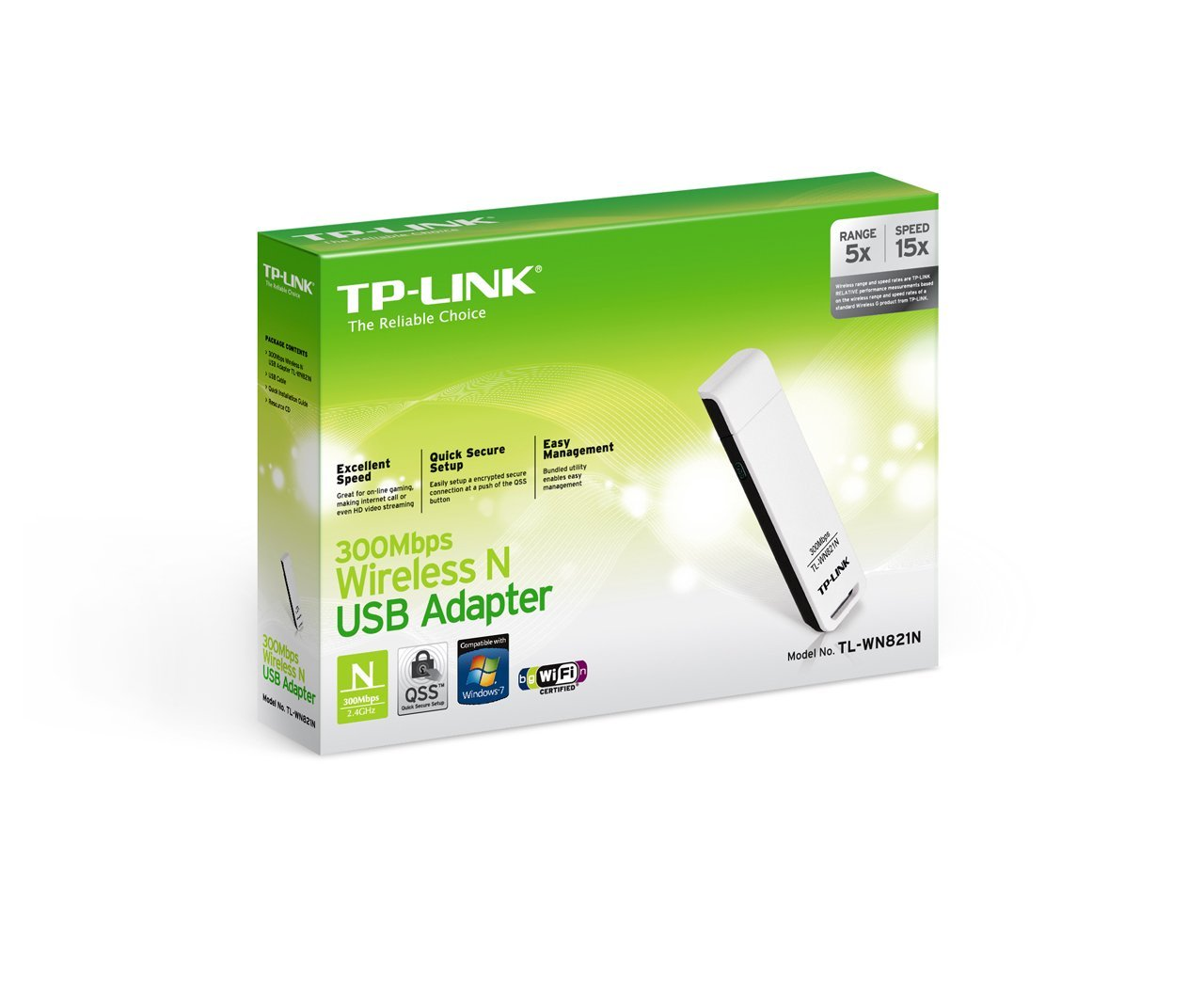

Package Contents | Wireless Adapter One USB extension cable Resource CD Quick Installation Guide |
System Requirements | Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits) |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
