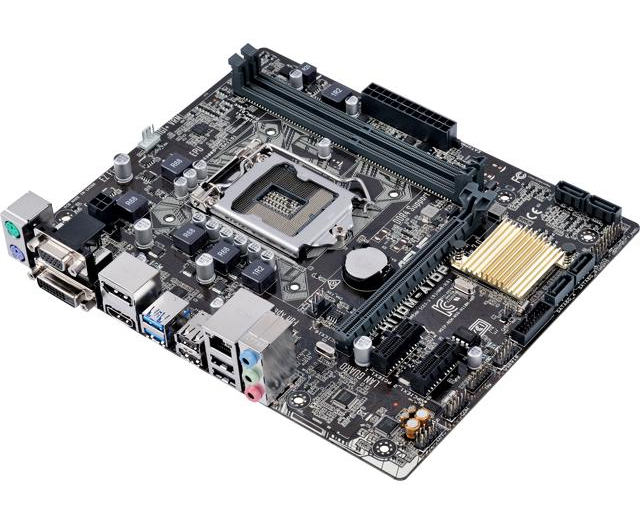

Asus H110M-A 1151 DDR4 USB 3.0 With HDMi Support

CPU Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list Chipset Intel® H110 Memory 2 x DIMM, Max. 32GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory *1 Supports Intel® Extreme Memory Profile (XMP) ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * The maximum memory frequency supported varies by processor. Graphic Integrated Graphics Processor- Intel® HD Graphics support Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 1024 MB Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ Supports up to 2 displays simultaneously Expansion Slots 1 x PCIe 3.0/2.0 x1 (x16 mode) 2 x PCIe 2.0 x1 Storage Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 LAN Realtek® RTL8111H Audio Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity USB Ports Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) Special Features ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 6 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - Low EMI Solution - USB 3.0 Boost - Mobo Connect - PC Cleaner Remote Entertainment - Media Streamer ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Operating System Support Windows® 10 , 64bit Windows® 8.1 , 64bit Windows® 7 , 32bit/64bit *4 Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 1 (blue) 4 x USB 2.0 3 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) Accessories User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE Support Disc Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version) Form Factor Micro ATX Form Factor 8.9 inch x 7.3 inch ( 22.62 cm x 18.55 cm ) Note *1: Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz. *2: These functions will work depending on the CPU installed. *3: Use a chassis with HD audio module in the front panel to support an 8-channel audio output. *4: Please refer to ASUS website and download “Windows® 7 installation guide” and “ASUS EZ installer” to install Windows® 7.
