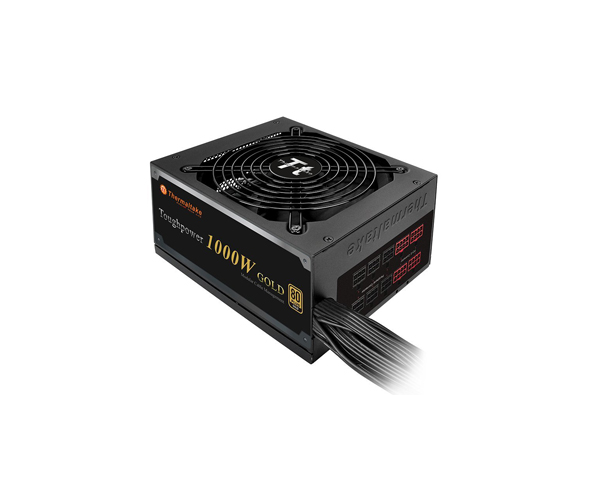

Thermaltake Tough Power 1000Watt
Interfaces/Ports
Receptacles: 1 x 20+4pin ATX Motherboard
1 x 8-pin EPS12V Motherboard
1 x 4+4pin ATX12V Motherboard
6 x 6+2pin PCI-E
12 x 5-pin Serial ATA
8 x 4-pin LP4 Peripheral Device
1 x 4-pin SP4 Floppy Drive
Physical Characteristics
Color: Black
Depth: 7.1" (180.1 mm)
Form Factor: Internal
Height: 3.4" (86.1 mm)
Length: 7.1" (180.1 mm)
Weight (Approximate): 3.99 kg
Width: 5.9" (150.1 mm)
Power Description
Input Current: 12 A @ 120V
6 A @ 230V
Input Voltage: 120 V AC
230 V AC
Input Voltage Range: 100 V AC to 240 V AC
Input Voltage Type: AC
Number of +12V Rails: 1
Output Power: 1 kW
Output Voltage: 3.3 V DC @ 25 A
5 V DC @ 25 A
12 V DC @ 83 A
-12 V DC @ 300 mA
5 V DC @ 3.50 A
Reliability
MTBF: 120000 Hour
Technical Information
Efficiency: 92%
Modular: Yes
Number of Fans: 1
Power Factor Correction (PFC): Active
Protection Type: Over Voltage
Overload
Specification Compliance: ATX12V/EPS12V
Warranty
Limited Warranty: 5 Year
UPC Code
0841163056271
